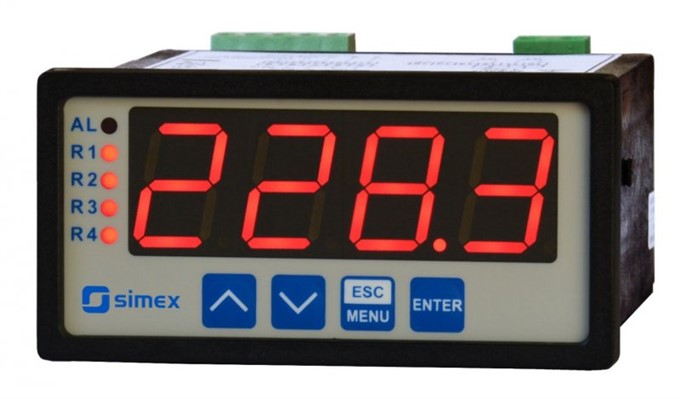

PUR-94
Sipariş için Ürün Kodlama
PUR-94

Power consumption
for 85 ÷ 260V AC/DC and 16V ÷ 35V AC power supply: max. 6,5 VA; 19V ÷ 50V DC power supply: max. 6,5 W
Outputs 1, 2 or 4 relays Imax=1A, Umax=30VDC/250VAC (cos fi=1)) and 0 or 1 x OC 30mA/30VDC/100mW; transducer power supply output: 24V DC +5%, -10% / max. 100 mA, stabilized, not insulated from measuring inputs
Measurement rangecurrent: 0-20 mA or 4-20 mA, voltage 0-5 V, 1-5V, 0-10V or 2-10V, milivoltage 0-60 mV, 0-75 mV, 0-100 mV or 0-150 mV; thermoresistance: Pt100, Pt500, Pt1000, measuring range -100°C ÷ 600°C; thermocouple K: -200°C ÷ +1370°C; S: -50°C ÷ +1768°C; J: -210°C ÷ +1200°C; T: -200°C ÷ +400°C; N: -200°C ÷ +1300°C; R: -50°C ÷ +1768°C; B: +250°C ÷ +1820°C; E: -200°C ÷ +1000°C
Power supply  19V ÷ 50V DC; 16V ÷ 35V AC or 85 ÷ 260V AC/DC
Display LED, red (green on request), 4 x 20 mm high, brightness adjustable in 8 steps
Inputsuniversal (programmable): current; voltage; milivoltage; thermoresistance or thermocouple type K, S, J, T, N, R, B, E
Accuracy 0.1% @25°C (inputs: current, voltage, milivoltage, thermoresistance, thermo-couple K, J, E); 0.2% @ 25°C (thermocouple N), 0.5% @25°C (thermocouple S, T, R, B)
Analogue outputs
(available with 2 x REL or OC, see ordering): active current: operating range 0/4-20 mA (max. 0-24 mA), load resistance 700 Ω max., resolution 13 bit passive current: isolated, operating range 4-20 mA (max. 2,8-24 mA), load resistance 600 Ω@24VDC, resolution 13 bit; active voltage: operating range 0/1-5V, 0/2-10V (max. 0-11V), load resistance min. 2000 Ω, resolution 13 bit
Stabilitytyp. 50 ppm/°C
Communication interface
RS-485, 8N1 and 8N2, 1200 bit/s ÷ 115200 bit/s, Modbus RTU (not galvanically isolated from measuring inputs)
Displayed values range
-999 ÷ 9999 + decimal point
Operating temperature
0°C ÷ +50°C (standard); -20°C ÷ +50°C (option)
Storage temperature
-10°C ÷ +70°C; -20°C do +70°C (depending on version)
Casepanel mounting
Case dimensions
96 x 48 x 100 mm
Case material
NORYL-GFN2S E1
Protection class
IP 65 (front), available additional frame IP 65 for panel cut-out sealing; IP 20 (case and connection clips)
Panel cut-out dimensions
90,5 x 43 mm
 Installation depth
 min. 102 mm
